McCormick Farmall 4 Cylinder Diesel Engine Service Manual PDF
Free US Shipping!
The images on this page have been greatly reduced to speed up the page loading. The thumbnails below have been reduced even further.
You can click on them to view larger images but they are still much lower quality than the images in the manual.
I'm proud to show you the quality inside my manuals! Why don't other vendors show what's inside theirs?
Click Any Image to Enlarge (still low res)

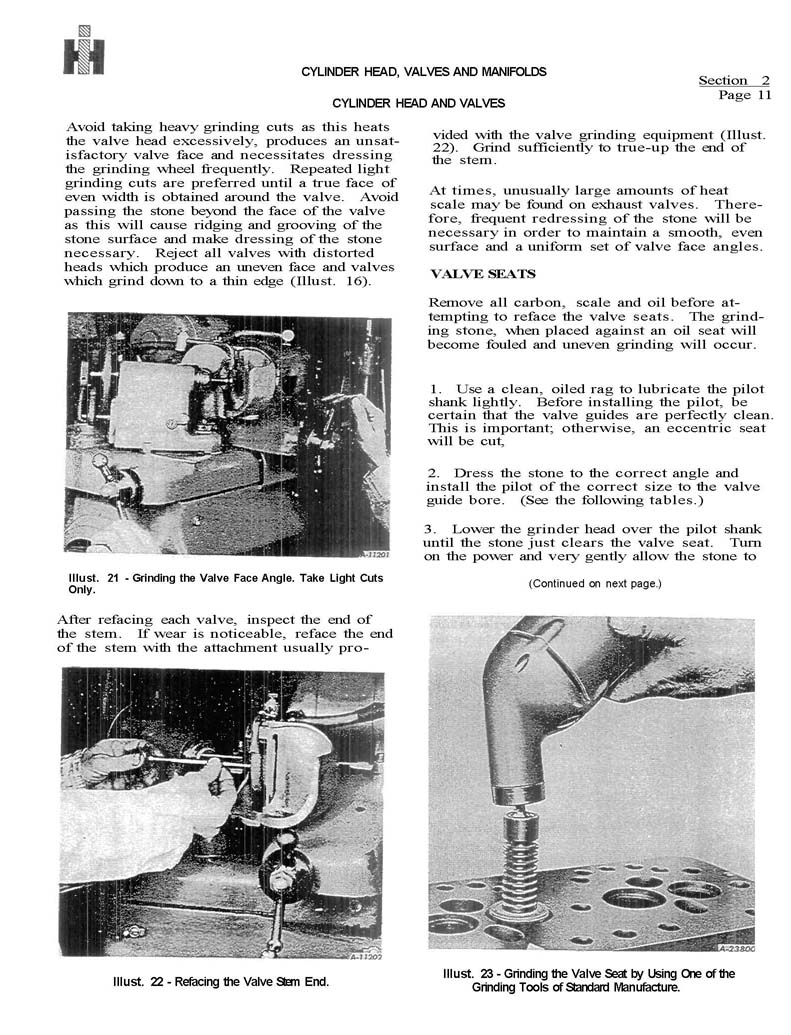

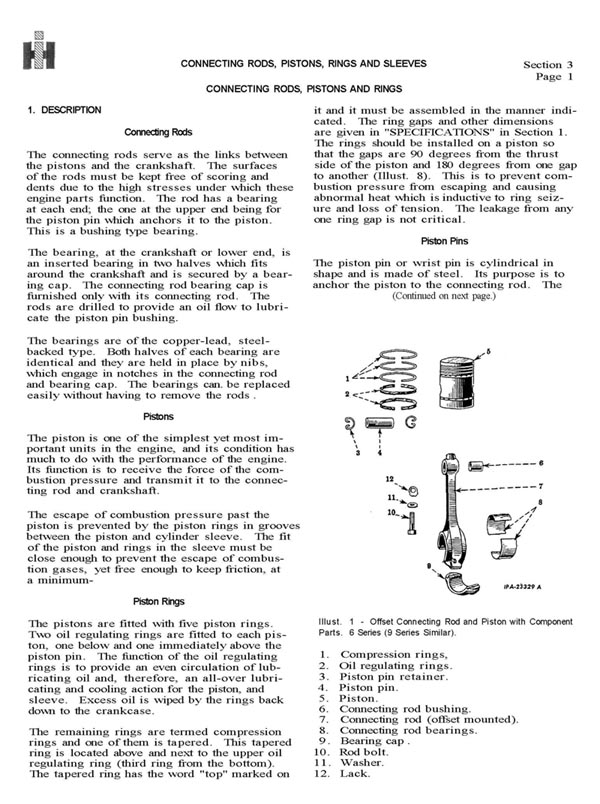

This PDF format CD has 184 pages of exploded drawings and service procedures for the Farmall 4 cylinder Diesel Engine. It was originally printed in 1964. The index is hyperlinked and the text is searchable so you don't need to hunt through all the pages for specific information. Just type in the words you're looking for and you'll get a list of hyperlinks that take you directly to the pages containing those words. Try that with a printed manual!
These engines were used in:
- The Super MD, Super MDV, Super MD-TA, & Super MDV-TA (D264 Engine)
- Super W-6, Super W-6-TA, 400, and 400-HV
as well as TD-6, UD-6, UD-264, UD-281-4, TD-9, UD-9A, UD-350, & UD-370.
- Super WD9 and the TD9 92 (after 1953)
- International 600
- TD9 91 Series
The instructions contained in this service manual are for the information and guidance of servicemen who are responsible for overhauling and repairing International 6, 6A, 264, 281-4,9, 9A, 350 and 370 four cylinder diesel engines.
This manual provides the serviceman with a fast, convenient reference to information on operation, maintenance and repairs, as well as descriptions of the major units and their functions in relation to other components of the engine. It thoroughly covers;
CYLINDER HEAD, VALVES AND MANIFOLDS
CONNECTING RODS, PISTONS, RINGS AND SLEEVES ( Engine Run-in Schedule)
OIL PUMP, FILTER AND ENGINE BALANCER
FAN, BELT, WATER PUMP AND THERMOSTAT
TIMING GEAR TRAIN, FRONT COVER AND CAMSHAFT
CRANKSHAFT, MAIN BEARINGS AND FLYWHEEL
COMPRESSION RELEASE MECHANISM
F-8 STARTING CARBURETOR
FUEL TRANSFER PUMP, STRAINER AND DRIVE
BATTERY IGNITION DISTRIBUTOR
GENERATOR AND BELT
IGNITION COIL, SPARK PLUGS AND BATTERIES
